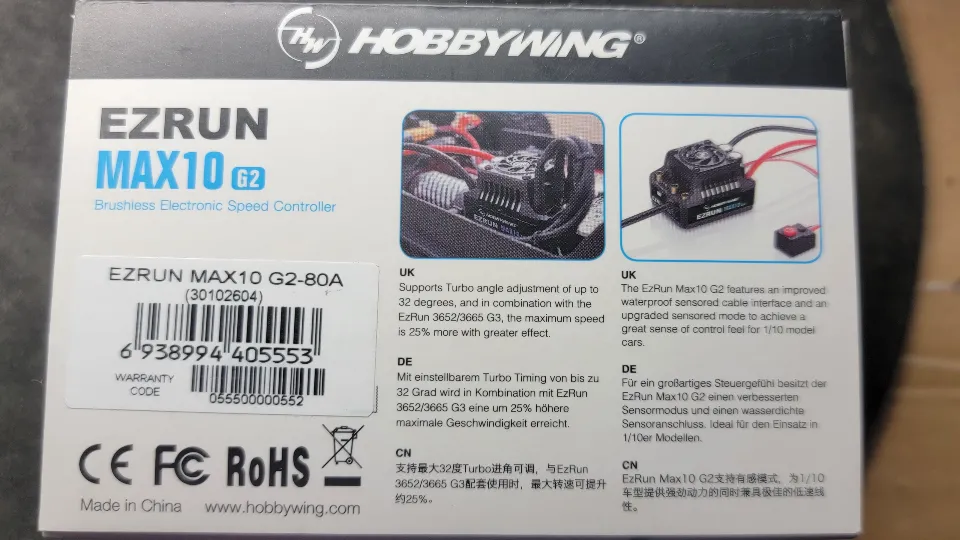

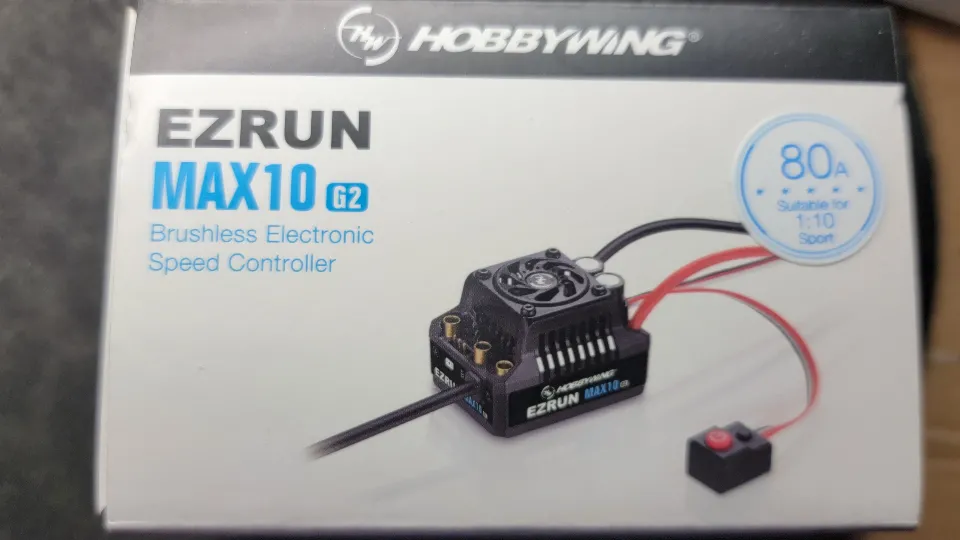

HobbyWing EZRUN Max 10 G2
GBP 50.00
-
+
add to cart
Overview
Specification
Upgraded sensor mode, great throttle response
Smart technology increases heat dissipation effectiveness
Large capacitor built-in, double explosion-proof
Smart freewheeling technology, higher efficiency
Data logging, convenient
Brushless Sensored ESC suitable for 1/10 On-road/Off-road
Waterproof
Cont./Peak Current: 80A/520A
2-3S Lipo
| Product Name | EZRUN MAX10 G2-80A | |
| Product Number | 30102604 | |
| Type |
Scale Brushed/Brushless Sensored/Sensorless Waterproof |
1/10th BL SD Waterproof |
| Specifications |
Cont./Peak Current Input Voltage BEC Output |
80A/520A 2-3S Lipo 6/7.4V,5A Note: 7.4V voltage can be output only when input ≥ 3S Lipo |
| Wires & Connectors |
Input Wires Input Connectors Output Connectors |
Red-12AWG-150mm*1 Black-12AWG-150mm*1 XT60 4.0mm Gold (female) |
| ESC Programing via |
SET Button on ESC LED Program Box LCD Program Box OTA Programmer Program Port |
No Supported Supporte(G2) Supported Separate |
| Fan |
Size Voltage Range Powered by |
25x25x10mm 5-7.4V Powered by BEC |
| Firmware | Firmware Upgrade | Supported |
| Size & Weight |
Size Weight |
53mm*39.5mm*37.2mm 120g(w/Wires) |
| Applications |
Motors Vehicles KV Rating/T Count |
SL BL Motors / SD BL Motors 1/10th On-road/Off-road Short Course Truck(Light-duty) With 2S Lipo: KV ≤ 6000 With 3S Lipo: KV ≤ 4200 3652 size motor |
