HobbyWing Quicrun 10BL120
GBP 25.00
-
+
add to cart
Overview
Specification

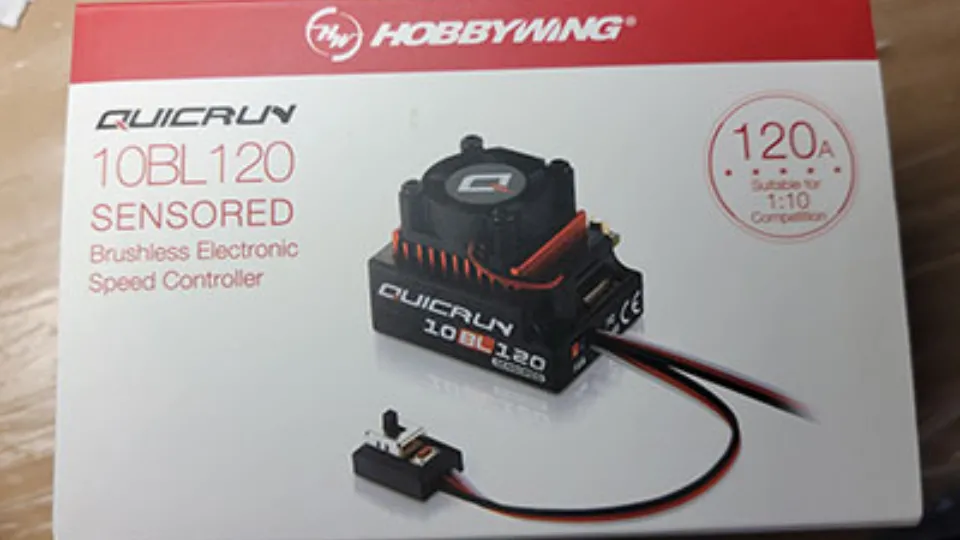

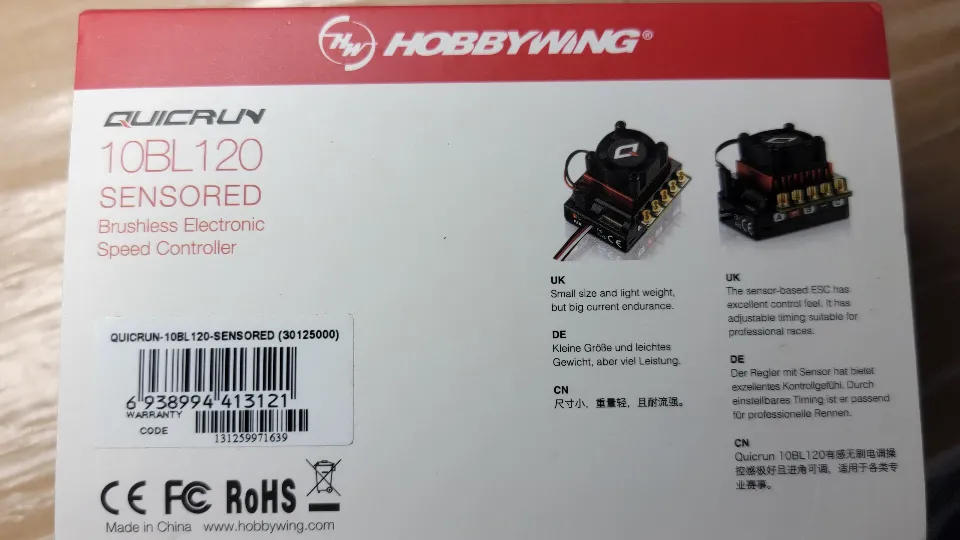

HobbyWing Quicrun 10BL120
Sensored Brushless Electric Speed Controller
4-9 cells Ni-Mh or 2-3S LiPo
Suitable for 1/10
Easy Operation
This ESC is specially designed for new beginners and intermediate modelers;
it not only carries forward the outstanding quality of HOBBYWING products
but simplifies the operation.
Compact Design &
SD/SL Dual Mode Supported
With the compact design, it’s applicable to various chassis.
With the Dual (Sensored/Sensorless) Drive Mode,
it’s compatible with different motors and brings
racers two different control feel.
High Reliability & Durability
Reliable hardware combined with advanced software technology allows
the QUICRUN 10BL60-SD to not only provide high power output but also
overload protection of the ESC circuit.
Efficient Cooling System
Hobbywing patented heat-conductive copper bar cover on the power board
of the QUICRUN 10BL60-SD, which can efficiently and effectively transfer heat to the
integrated CNC machined billet aluminum heat sink housing, combined with
high-performance cooling fan can keep your ESC as cool as possible.
Single-button Programming & Factory Reset
The SET button on the ESC allows the user to easily program or factory reset the ESC with ease.
Wide Applicability
This ESC is designed for practice and daily training of1/10th, 1/12th scale touring cars, buggies, and F1.
| Product Name | QuicRun 10BL120 Sensored | |
| Product Number | 30125000 | |
| Type |
Scale Brushed/Brushless Sensored/Sensorless Waterproof |
1/10th BL SD No |
| Specifications |
Cont./Peak Current Input BEC Output |
120A/760A 2-3S Lipo/5-9 Cell NiMH Linear Mode:6V@3A |
| Wires & Connectors |
Input Wires Output Wires Input Connectors Output Connecotors |
Red-12AWG-200mm*1/Black-12AWG-200mm*1 Blue-12AWG-200mm*1/Yellow-12AWG-200mm*1/Orange-12AWG-200mm*1 No No |
| ESC Programing via |
SET Button on ESC LED Program Box LCD Program Box WiFi Module OTA Programmer Program Port |
Supported Supported Not Supported Not Supported Not Supported Program/Throttle Wire |
| Fan |
Size Voltage Range Powered by |
25x25x10mm 5-8.4V (Powered by the Battery) |
| Firmware | Firmware Upgrade | Not Supported |
| Size & Weight |
Size Weight |
33x28x31.5mm (w/ Fan) 105g105g (w/ Wires) |
| Applications |
Motors Vehicles KV Rating/T Count |
SL BL Motors/SD BL Motors 1/10thTouring Cars/Buggies/Drift Cars/F1 2SLipo: 1/10thTouring Cars≥4.5T；1/10th Buggies≥5.5T 3SLipo: 1/10thTouring Cars≥10.5T；1/10th Buggies≥13.5T |
